You can convert a report from a grid view to a graphical representation.

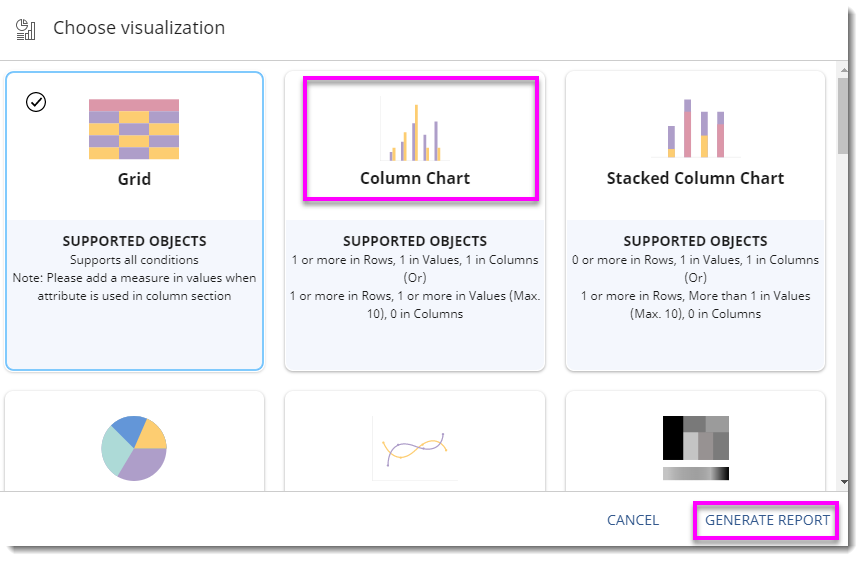

To change a report from grid view to a chart or graph, open your report and click the Change Visualization button at the bottom left corner of the screen.
The following types of charts are available:
Column Chart![]() |
Stacked Column Chart![]() |
100% Stacked Column Chart![]() |
Line Chart![]() |
Heat Map![]() |
Multi Axis Chart![]() |
Pareto Chart![]() |
Bar Chart![]() |
Stacked Bar Chart![]() |
100% Stacked Bar Chart![]() |
Half Donut![]() |
Column & Line Combo![]() |
Bar & Line Combo![]() |
Bubble![]() |
Map![]() |
Waterfall![]() |
Gauge![]() |
Pie Chart![]() |
Tree Map |
Histogram |
Chart type will be enabled only when your data is as arranged with the correct number of rows, columns, and values. See the "Support Conditions" table below for complete details for each visualization type.
Any chart displayed in grey scale is not a match for your data and can not be used.
Click on the chart that you wish to use, then click Generate Report.
Your data will now be displayed in a chart format.
If you would like to see the chart and the grid view at the same time, check the box next to Show Grid with Chart when making your chart selection.

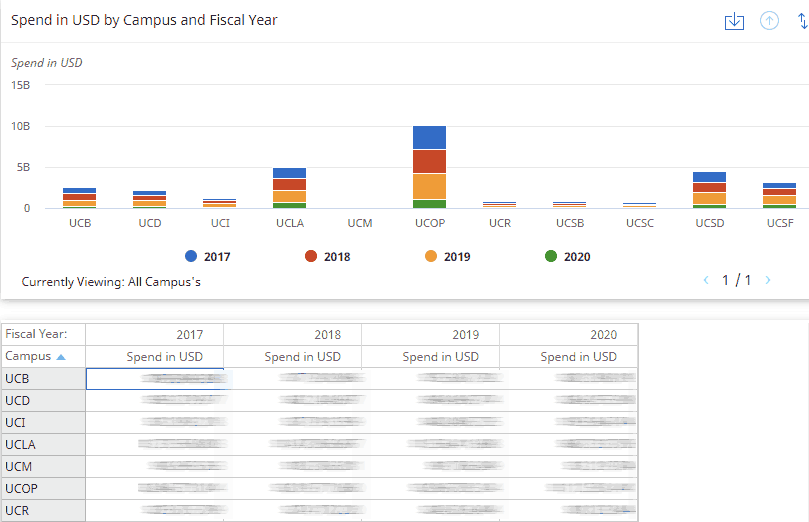

Now your chart and your data grid are displayed at the same time.
Supporting Conditions
Chart |
Chart Type |
Rows |
Columns |
Values |
Display |
---|---|---|---|---|---|
|
|
(number of objects) |
(number of objects) |
(number of objects) |
(number of values supported) |
Column Chart |
Type 1 |
1 or more |
0 |
1 or more |
Any |
Column Chart |
Type 2 |
0 or more |
1 |
1 |
Any |
Stacked Column Chart |
Type 1 |
0 or more |
1 |
1 |
Any |
Pie Chart |
Type 1 |
1 or more |
0 |
1 |
250 (Max) |
Line Chart |
Type 1 |
1 or more |
0 |
1 or more |
Any |
Line Chart |
Type 2 |
0 or more |
1 |
1 |
Any |
Heat Map |
Type 1 |
1 or more |
0 |
2 |
250 (Max) |
Multiple Axis Chart |
Type 1 |
1 or more |
0 |
2 or more |
Any |
Pareto Chart |
Type 1 |
2 or more |
0 |
1 |
Any |
Bar Chart |
Type 1 |
1 or more |
1 |
1 |
|
Bar Chart |
|
1 or more |
2 or more (max 10) |
0 |
|
Stacked Bar Chart |
Type 1 |
0 or more |
1 |
1 |
|
Stacked Bar Chart |
Type 2 |
1 or more |
0 |
More than 1 |
|
100% Stacked Bar Chart |
Type 1 |
0 or more |
1 |
1 |
|
100% Stacked Bar Chart |
Type 2 |
1 or more |
More than 1 (Max 10) |
0 |
|
Half Donut |
|
1 or more |
0 |
1 |
|
Column & Line Combo |
Type 1 |
1 or more |
0 |
2 or more |
|
|
|
Plot using first "X" measures Enter the number of metrics you want to see as columns |
|||
Bar & Line Combo |
Type 1 |
1 or more |
0 |
2 or more |
|
|
|
Plot using first "X" measures Enter the number of metrics you want to see as columns |
|||
Bubble |
Type 1 |
0 or more |
0 |
3 |
|
Bubble |
Type 2 |
0 |
1 |
3 |
|
Bubble |
Type 3 |
1 |
0 |
2 |
|
Map |
|
1 |
0 or 1 |
0 or 1 |
|
Waterfall |
Type 1 |
1 or more |
1 |
1 |
|
Waterfall |
Type 2 |
1 or more |
0 |
1 |
|
Gauge |
|
1 |
0 |
2 or 3 |
|
Tree Map |
|
1 or more |
0 |
2 |
|
Histogram |
|
1 OR 0 |
0 1 |
3 3 |
|
Where data is missing, we are waiting for confirmation from GEP.
